STM6000 Edge Box HMI / How to update the system?

1. Please get the System Update module from website and save it to a USB storage device.
https://www.proface.com/en/download/stm6000/edge_box_hmi_update

2. Confirm that the files BOOTOS13.SYS and BOOTLD13.SYS are in the root folder of the USB storage device and then connect the USB storage device to the Edge Box HMI.

3. Open a browser on your PC, and in the address bar enter the IP address of the Edge Box HMI.
https://192.168.1.80 (when connecting with PC via Ethernet)
https://169.254.100.100 (when connecting with PC via USB)

4. Login to Hardware Configuration page.

NOTE: ​​​​​​
- The user name is "Admins" and cannot be changed.

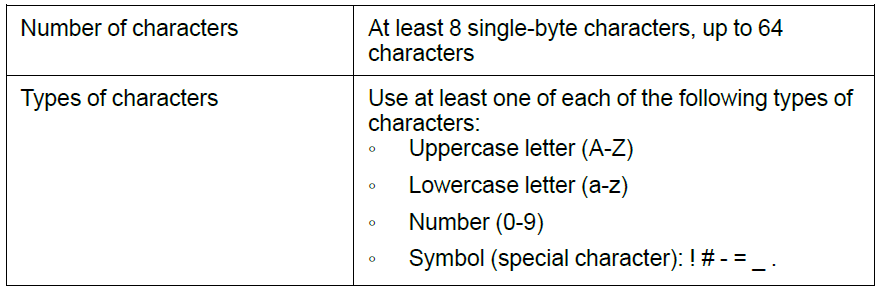

- The password must meet the following requirements.

4. Open the SYSTEM tab. In the Firmware Update tab, click Update.


5. Go to INFORMATION tab and check if the System Version is now the updated one.
