| You have to register Device Address inside ＧＰ and Device/PLC as "Symbol" for reads and write each Device Data. About Register Symbol, please follow descriptions bellow. |

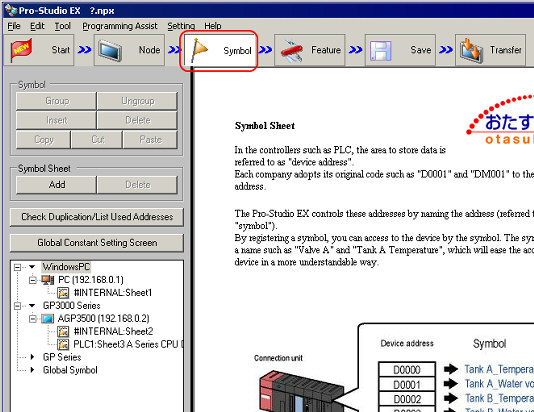

| 1. | Click [Symbol] Icon on the status bar. | |  | | |

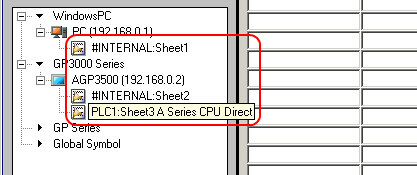

| 2. | Select the Device/PLC (Sheet) in which you want to register symbols. | |
| *1 | "GP3000 series" is separeting sheets name, "#INTERNAL" and "PLC*".
GPs internal address register to "#INTERNAL" sheet as a Symbol. PLC address register to "PLC*" sheet as a Symbol. | | *2 | The Symbol sheet of "GP series" is only "#INTERNAL" sheet. You have to register to "#INTERNAL" sheet When register GP2000 series, GLC series and also Device/PLC connecterd FGW. |
| | |

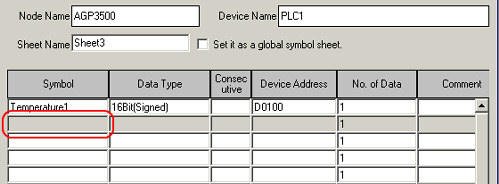

| 3. | The Symbol sheetis appearing. Double-clike the Red Circle area. | |  | | |

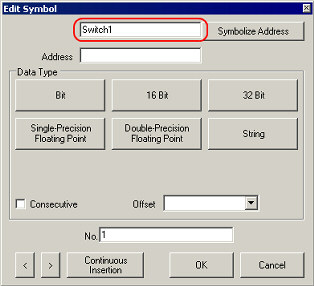

| 4. | [Edit Symbol] Window is appearing. Enter Symbolize address that to be registed inside Red Circle area. | |  | *3 | You can enter the number of charactor are up to 32words. | | *4 | You cannot enter number at "Top" of Symbolize address. |
| | |

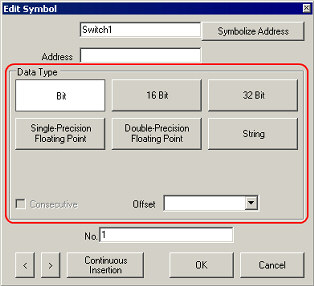

| 5. | Setting the "Data Type". | |  | | |

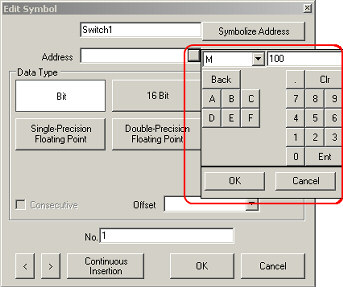

| 6. | When you click the button of ［Address］, the Keypadis appearing. Enter the address as a device address to be registerd as a Symbol. | |  | | |

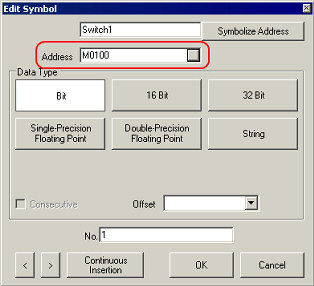

| 7. | Click ［OK］ after displaying Device address at "Adress" window. | |  | | |

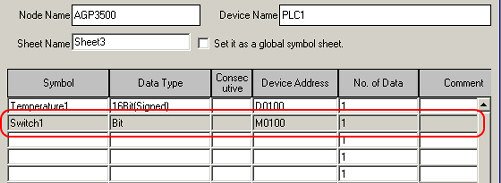

| 8. | A Symbol was registerd. | |  | *5 | You can share a registerd Symbol sheet between defferent Entry Node when you Check the box od "Set it as a global symbol sheet". Please refer to "Golbal Symbol sheet", click here |
| | |

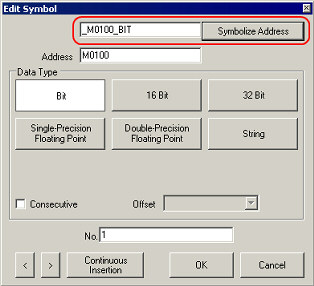

| MEMO | | ・ | Please check totaly after registerd Symbols. If the Symbol name or Device address are duplicated, "Pro-Server EX" would not operated correctly because of Error. Please refer to"Checking registerd synbols", click here | | ・ | If you want toregister device address as a Symbol name not optional Symbol name, you can click [Simbolize Address] after stting "Address" and "Data type". The Device address and "Dara Type" are regisrerd as a "Symbol Name". | |  |
|
|
|
